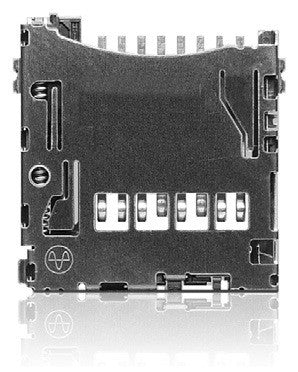

Yamaichi PJS MicroSD Card Connector - Push / Push (Top Mount) - 2130

Yamaichi PJS MicroSD Card Connector - Push / Push (Top Mount) - 2130

POA

Specifications

Insulation Resistance: 1,000MΩ min. at 500V DC
Withstanding Voltage: 500V AC rms for 1 minute
Contact Resistance: 100mΩ at 1mA / 20mV max.
Voltage Rating: 50Vrms AC
Current Rating: 0.5A
Operating Temp. Range: –25°C to +85°C
Coplanarity: < 0.1mm
Reflow Temp.: 220°C for max.60 secs.,260° peak /10 secs
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding Plate: Stainless
Contacts: Copper Alloy, Ni-Au

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
PJS008-2130-0 Yes Yes Yes



Outline Dimensions



Datasheet

Download
