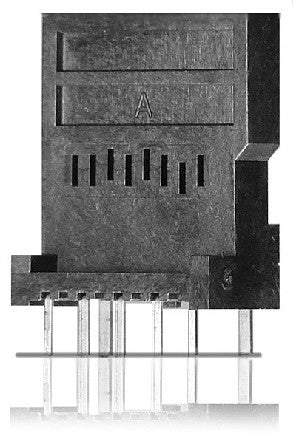

Yamaichi PJS MicroSD Card Connector - Manual Type (Vertical Mount)
Yamaichi PJS MicroSD Card Connector - Manual Type (Vertical Mount)
Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.
Specifications
Insulation Resistance: 1,000M min. at 250V DC
Withstanding Voltage: 250V AC rms for 1 minute
Contact Resistance: 100m at 1mA / 20mV max.
Voltage Rating: 50Vrms AC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Mating Cycles: 10,000 times, insertion / extraction
Materials and Finish
Insulator: LCP
DIP Terminals: Brass, Plating Ni / Tin
Contacts: PB, Plating Ni-Au / Tin
Part Dimensions
| Part Number | Card Detector | SMT Clips | Locking Mechanism |
| PJS008U-3000-0 | - | - | - |
Outline Dimensions
Datasheet
