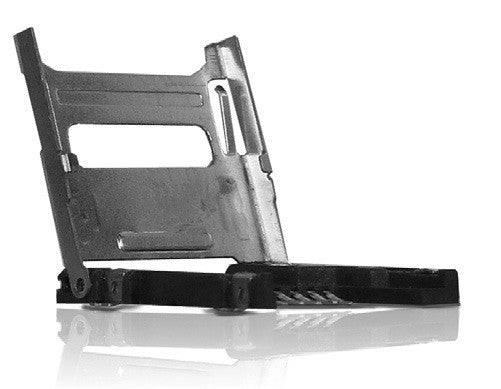

Yamaichi PJS MicroSD Card Connector - Hinge Type

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 80m׸ initial
Voltage Rating: 10V max.
Current Rating: 0.5A max.
Operating Temp. Range: 25C to +85C
Mating Cycles: 10,000 insertions

Materials and Finish

Insulator: LCP
Shielding Plate: SUS
Contacts: Base - Phosphor Bronze
Mating area - Plating Ni-Au
Solder area - Ni-A

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
PJS008T-0000-0 - Yes Yes

Outline Dimensions

Datasheet

Download
