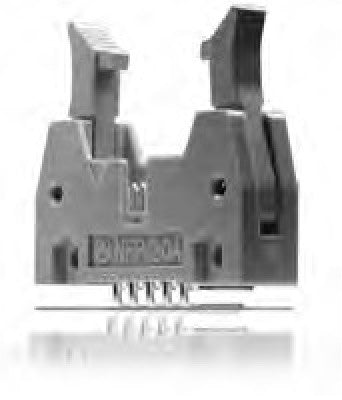

Yamaichi NFP Series 90 Solder Dip Latch Header Plug (1.27mm pitch)

Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 15m׸ max. at 10mA
Current Rating: 1A
Operating Temp. Range: 20C to +85C
Soldering Temperature: 260C / 5 sec.

Materials and Finish

Housing: PBT (glass filled), UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Au over Ni

Part Dimensions

Part	No. of leads	A	B	C	D	E	F
NFP-10A-0122BF	10	24.28	5.08	11.58	15.08	38.2	40.2
NFP-16A-0122BF	16	28.09	8.89	15.39	18.89	42	44
NFP-20A-0112BF	20	30.63	11.43	17.93	21.43	44.6	46.6
NFP-26A-0112BF	26	34.44	15.24	21.74	25.24	48.4	50.4
NFP-34A-0112BF	34	39.52	20.32	26.82	30.32	53.5	55.5
NFP-34A-0122BF	34	39.52	20.32	26.82	30.32	53.5	55.5
NFP-40A-0112BF	40	43.33	24.12	30.63	34.13	57.3	59.3
NFP-40A-0122BF	40	43.33	24.12	30.63	34.13	57.3	59.3
NFP-50A-0112BF	50	49.68	30.48	36.98	40.48	63.6	65.6
NFP-60A-0112BF	60	56.03	36.83	43.33	46.83	70	72
NFP-60A-0122BF	60	56.03	36.83	43.33	46.83	70	72
NFP-64A-0112BF	64	58.57	39.37	45.87	49.37	72.5	74.5
NFP-64A-0122BF	64	58.57	39.37	45.87	49.37	72.5	74.5
NFP-80A-0112BF	80	68.73	49.53	56.03	59.53	82.7	84.7
NFP-80A-0122BF	80	68.73	49.53	56.03	59.53	82.7	84.7
NFP-100A-0112BF	100	81.43	62.23	68.73	72.23	95.4	97.4
NFP-100A-0122BF	100	81.43	62.23	68.73	72.23	95.4	97.4
