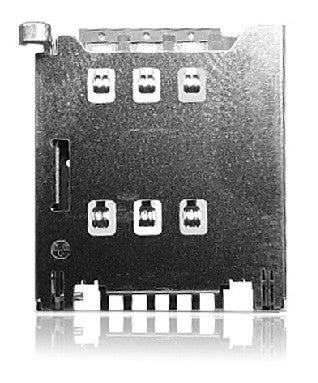

Yamaichi FUS Micro Sim Card Connector (Top Mount)
Yamaichi FUS Micro Sim Card Connector (Top Mount)
Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.
Specifications
Insulation Resistance: 500M min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m max. at 1mA / 20mV max.
Current Rating: 0.5A
Voltage Rating. 5.0Vrms
Operating Temp. Range: -25C to +85C
Mating Cycles: 5,000 insertions
Materials and Finish
Insulator: LCP
Contact: Copper Alloy, Ni-Au
Part Dimensions
| Part Number | Switch | Locking Mechanism |
| FUS006-8500-0 | No | Pull Eject |
Outline Dimensions
Datasheet
