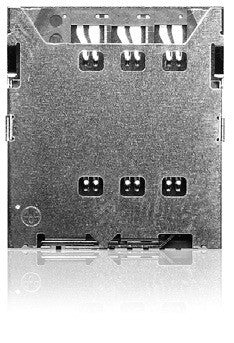

Yamaichi FUS Micro/Nano Sim Card Connector (Removable Tray)
Yamaichi FUS Micro/Nano Sim Card Connector (Removable Tray)
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Specifications
Insulation Resistance: 500M min.
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m max. at 1mA / 20mV max.
Current Rating: 0.5A
Voltage Rating. 5.0Vrms
Operating Temp. Range: -25C to +85C
Mating Cycles: 5,000 insertions
Materials and Finish
Insulator: LCP
Contact : Copper Alloy,
t = 0.12, Ni-Au
Part Dimensions
| Part Number | Description | Switch | Locking Mechanism |
| FUS006-3210-0 | SIM Card Connector | No | Pull Eject |
| FUA006-3210-0 | Micro SIM Tray | No | Pull Eject |
| FUA006-3220-0 | Nano SIM Tray | No | Pull Eject |
Outline Dimensions
Datasheet
