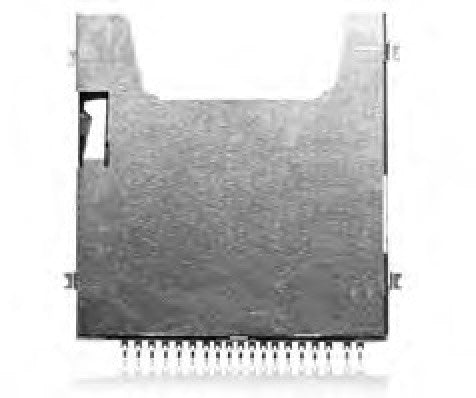

Yamaichi FPS SD UHSII Card Reader - Push / Push Top Mount (SMT)

Regular price £0.00 GBP
Regular price Sale price £0.00 GBP
Sale Sold out
Part Number


Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m׸ max.
Voltage Rating: 5V DC
Current Rating: 1A max.
Operating Temp. Range: 20C to +60C
Mating Cycles: 10,000

Materials and Finish

Insulator: LCP rated (UL94V-0) black
Contacts: Phosphor Bronze at contact area
Contact Plating: Selective Gold over Nickel
Shell Stainless Steel

Part Dimensions

Part Number Card Detector SMT Clips Locking Machanism
FPS017T-2000-FL-TRAY Yes Yes Yes

Outline Dimensions
