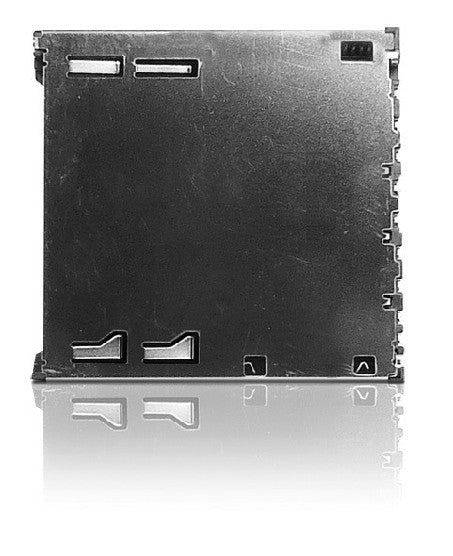

Yamaichi FPS SD Card and MMC Reader - Push / Push (Low Profile)

Regular price £3.38 GBP
Regular price Sale price £3.38 GBP
Sale Sold out
Part Number


Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m׸ at 1mA / 40mV max.
Voltage Rating: 5V DC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Coplanarity: < 0.1mm
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding Plate: Stainless,
Contacts: Copper Alloy: t =0.15
Contact Area: Ni-Au
Solder Tail: Ni-SnCu

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
FPS009-2901-0 Yes Yes Yes

Outline Dimensions
