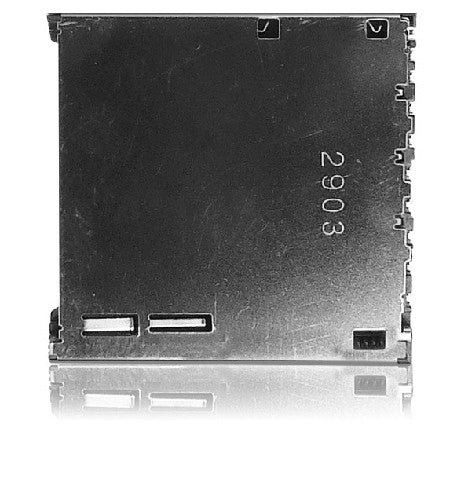

Yamaichi FPS SD Card and MMC Reader - Push / Push For Automotive

Yamaichi FPS SD Card and MMC Reader - Push / Push For Automotive

£1.28

Specifications

Insulation Resistance: 1,000MΩ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100mΩ at 1mA / 20mV max.
Voltage Rating: 5V DC
Current Rating: 0.5A
Operating Temp. Range: –25°C to +85°C
Mating Cycles: 5,000 (harsh environment)
10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding plate: Stainless
Contact: Copper Alloy
Contact area:Ni-Au
Solder tail: Ni-Sn

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
FPS009-2903-0-VE Yes Yes Yes



Outline Dimensions
