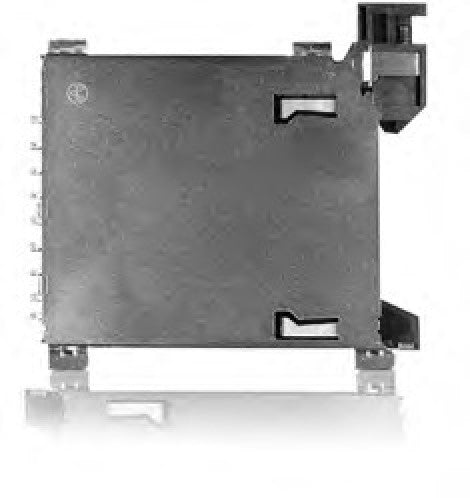

Yamaichi FPS SD Card and MMC Reader - One Action Lock Type (SMT)

Regular price £1.56 GBP
Regular price Sale price £1.56 GBP
Sale Sold out
MOQ
Part Number

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m׸ at 1mA / 20mV max.
Voltage Rating: 5V DC
Current Rating: 0.5A max.
Operating Temp. Range: 30C to +85C
Mating Cycles: 100

Materials and Finish

Insulator: LCP Black (UL94V-0)
Contacts: Copper Alloy with selective Gold

Part Dimensions

Part Number Automotive Compliant SMT Clips Locking Mechanism
FPS009-4200-0 (03) Yes Yes Yes

Outline Dimensions

Datasheet

Download
