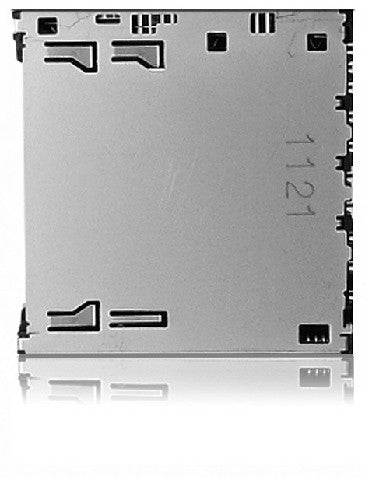

Yamaichi FPS SD Card and MMC Connector - Special Switch Position (Top Mount)
Yamaichi FPS SD Card and MMC Connector - Special Switch Position (Top Mount)
Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.
Specifications
Insulation Resistance: 1,000M min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m at 1mA / 40mV max.
Voltage Rating: 5V DC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Mating Cycles: 10,000 (office environment)
Materials and Finish
Insulator: LCP
Shielding plate: Stainless
Contact: Copper Alloy: t=0.15
Contact Area:Ni-Au
Solder Tail: Ni-Sn
Part Dimensions
| Part Number | Card Detector | SMT Clips | Locking Mechanism |
| FPS009-2920-0 | Yes | No | Yes |
Outline Dimensions
Datasheet
