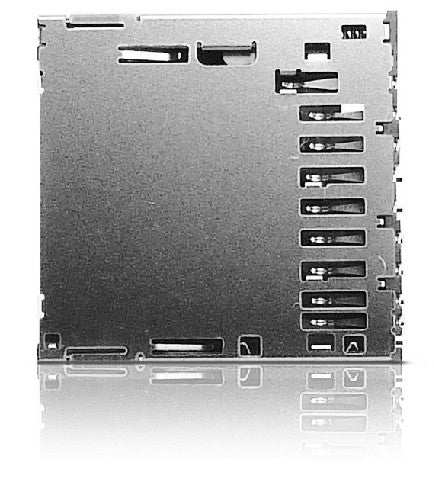

Yamaichi FPS SD Card and MMC Connector - Special Switch Position (Reversed Type)

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m׸ at 1mA / 40mV max.
Voltage Rating: 5V DC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding plate: Stainless
Contact: Copper Alloy: t=0.15
Contact Area:Ni-Au
Solder Tail: Ni-Sn

Part Dimensions

Outline Dimensions
