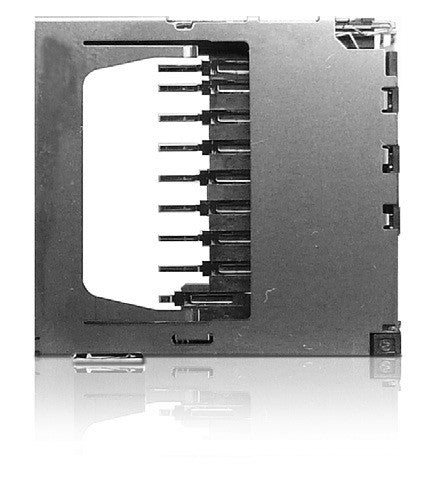

Yamaichi FPS SD Card and MMC Connector - Push / Push (Small Size)

Yamaichi FPS SD Card and MMC Connector - Push / Push (Small Size)

£4.42

Specifications

Insulation Resistance: 1,000MΩ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100mΩ at 1mA / 20mV max.
Voltage Rating: 250Vrms AC
Current Rating: 0.5A
Operating Temp. Range: –25°C to +85°C
Coplanarity: < 0.1mm
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding Plate: SUS, t = 0.2
Contacts: Copper Alloy: t =0.15
Contact Area: Ni-Au
Solder Tail: Ni-SnCu

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
FPS009-2305-0 Yes Yes Yes



Outline Dimensions
