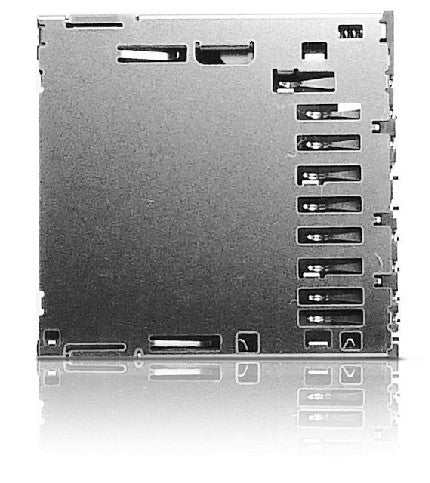

Yamaichi FPS SD Card and MMC Connector - Push / Push (Reversed Type)

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 500M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m׸ at 1mA / 20mV max.
Voltage Rating: 5Vrms AC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Coplanarity: < 0.1mm
Mating Cycles: 10,000 times (office environment)

Materials and Finish

Insulator: LCP
Shielding plate: Stainless
Contact: Copper Alloy
Contact Area:Ni-Au
Solder Tail: Ni-Sn

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
FPS009-2960-0 Yes Yes Yes

Outline Dimensions

Datasheet

Download
