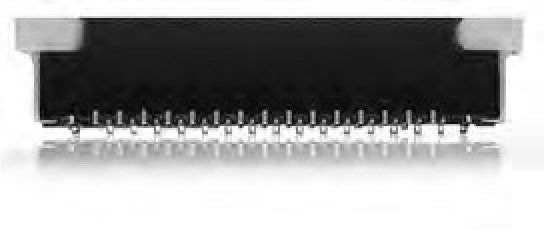

Yamaichi FPC Zif for FFC / FPC Connector 180 SMT (1.00mm pitch)

Yamaichi FPC Zif for FFC / FPC Connector 180 SMT (1.00mm pitch)

£53.58

Specifications

Insulation Resistance: 100MΩ minimum
Contact Resistance: 20mΩ maximum
Withstanding Voltage: 500V ACrms for 1 minute
Voltage Rating: 125V DC
Current Rating: 1A
Operating Temp. Range: -20°C to +85°C
Solder Temperature: 230°C min. / 60 sec., 250°C peak
Mating Cycles: min 30 times

Materials and Finish

Housing: High-Temp. Thermoplastic (UL94V-0)
Actuator: High-Temp. Thermoplastic (UL94V-0)
Contacts: Copper Alloy, Tin Plated

Part Dimensions

Part Number Dim. A Dim. B Dim. C
FPC-96212-0401 11 3 5.15
FPC-96212-0501 12 4 6.15
FPC-96212-0601 13 5 7.15
FPC-96212-0701 14 6 8.15
FPC-96212-0801 15 7 9.15
FPC-96212-1001 17 9 11.15
FPC-96212-1101 18 10 12.15
FPC-96212-1201 19 11 13.15
FPC-96212-1301 20 12 14.15
FPC-96212-1401 21 13 15.15
FPC-96212-1501 22 14 16.15
FPC-96212-1601 23 15 17.15
FPC-96212-1701 24 16 18.15
FPC-96212-1801 25 17 19.15
FPC-96212-1901 26 18 20.15
FPC-96212-2001 27 19 21.15
FPC-96212-2101 28 20 22.15
FPC-96212-2201 29 21 23.15
FPC-96212-2301 30 22 24.15
FPC-96212-2401 31 23 25.15
FPC-96212-2501 32 24 26.15
FPC-96212-2601 33 25 27.15
FPC-96212-2701 34 26 28.15
FPC-96212-2801 35 27 29.15
FPC-96212-3001 37 29 31.15
FPC-96212-3201 39 31 33.15
FPC-96212-3301 40 32 34.15
FPC-96212-3401 41 33 35.15
