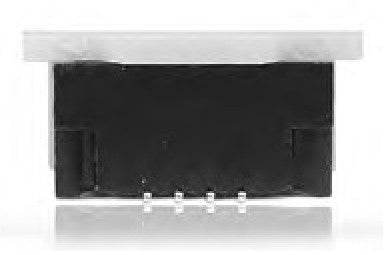

Yamaichi FPC Zif for FFC / FPC Connector 180 SMT (0.50mm pitch)
Regular price
£71.00 GBP
Regular price
Sale price
£71.00 GBP
Unit price
per
Couldn't load pickup availability
Specifications
Insulation Resistance: 100M minimum
Contact Resistance: 20m maximum
Withstanding Voltage: 500V ACrms for 1 minute
Voltage Rating: 50V DC
Current Rating: 0.5A
Operating Temp. Range: -40C to +80C
Solder Temperature: 230C min. / 60 sec., 250C peak
Mating Cycles: min 30 times
Materials and Finish
Housing: High-Temp. Thermoplastic (UL94V-0)
Actuator: High-Temp. Thermoplastic (UL94V-0)
Contacts: Copper Alloy, Tin Plated
Part Dimensions
| Part Number | Dim. A | Dim. B | Dim. C |
| FPC-98210-0401 | 8.5 | 1.5 | 2.6 |
| FPC-98210-0501 | 9 | 2 | 3.1 |
| FPC-98210-0601 | 9.5 | 2.5 | 3.6 |
| FPC-98210-0801 | 10.5 | 3.5 | 4.6 |
| FPC-98210-0901 | 11 | 4 | 5.1 |
| FPC-98210-1001 | 11.5 | 4.5 | 5.6 |
| FPC-98210-1101 | 12 | 5 | 6.1 |
| FPC-98210-1201 | 12.5 | 5.5 | 6.6 |
| FPC-98210-1301 | 13 | 6 | 7.1 |
| FPC-98210-1401 | 13.5 | 6.5 | 7.6 |
| FPC-98210-1501 | 14 | 7 | 8.1 |
| FPC-98210-1601 | 14.5 | 7.5 | 8.6 |
| FPC-98210-1701 | 15 | 8 | 9.1 |
| FPC-98210-1801 | 15.5 | 8.5 | 9.6 |
| FPC-98210-2001 | 16.5 | 9.5 | 10.6 |
| FPC-98210-2101 | 17 | 10 | 11.1 |
| FPC-98210-2201 | 17.5 | 10.5 | 11.6 |
| FPC-98210-2401 | 18.5 | 11.5 | 12.6 |
| FPC-98210-2501 | 19 | 12 | 13.1 |
| FPC-98210-2701 | 20 | 13 | 14.1 |
| FPC-98210-2801 | 20.5 | 13.5 | 14.6 |
| FPC-98210-2601 | 19.5 | 12.5 | 13.6 |
| FPC-98210-3001 | 21.5 | 14.5 | 15.6 |
| FPC-98210-3201 | 22.5 | 15.5 | 16.6 |
| FPC-98210-3301 | 23 | 16 | 17.1 |
| FPC-98210-3401 | 23.5 | 16.5 | 17.6 |
| FPC-98210-3601 | 24.5 | 17.5 | 18.6 |
| FPC-98210-3901 | 26 | 19 | 20.1 |
| FPC-98210-4001 | 26.5 | 19.5 | 20.6 |
| FPC-98210-4101 | 27 | 20 | 21.1 |
| FPC-98210-4401 | 28.5 | 21.5 | 22.6 |
| FPC-98210-4501 | 29 | 22 | 23.1 |
| FPC-98210-4801 | 30.5 | 23.5 | 24.6 |
| FPC-98210-4901 | 31 | 24 | 25.1 |
| FPC-98210-5001 | 31.5 | 24.5 | 25.6 |
Outline Dimensions
