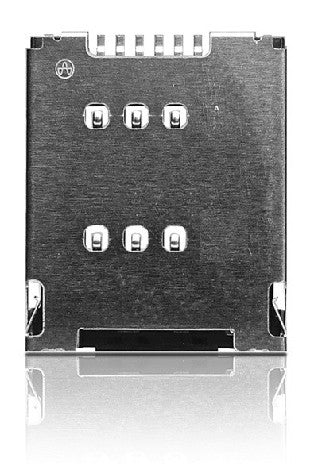

Yamaichi FMS Sim Card Connector (Top Mount, Removable Tray)

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 500M׸ min. at 500V DC
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m׸ max. at 1mA / 20mV max. Current
Rating: 0.5A
Voltage Rating. 5V AC rms
Operating Temp. Range: -25C to +85C
Mating Cycles: 5,000 insertions

Materials and Finish

Insulator LCP
Stainless Plate: Stainless
Contact: Copper Alloy, Ni-Au

Part Dimensions

Part Number Description Switch Locking Mechanism
FMS006-3710-0 SIM Card Connector No Removable Tray
FMA006-3700-0 SIM Card Tray No Removable Tray

Outline Dimensions

Datasheet

Download
