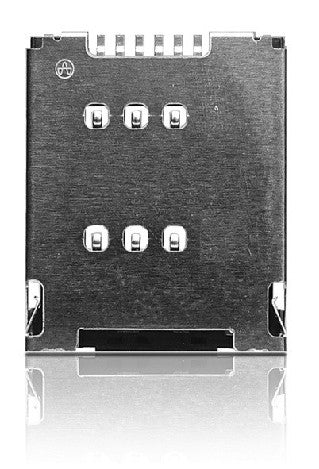

Yamaichi FMS Sim Card Connector Reversed Type (Removable Tray)

Specifications

Insulation Resistance: 500M׸ min. at 500V DC
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m׸ max. at 1mA / 20mV max. Current
Rating: 0.5A
Voltage Rating. 5V AC rms
Operating Temp. Range: -25C to +85C
Mating Cycles: 5,000 insertions

Materials and Finish

Insulator LCP
Stainless Plate: Stainless
Contact: Copper Alloy, Ni-Au

Part Dimensions

Outline Dimensions
