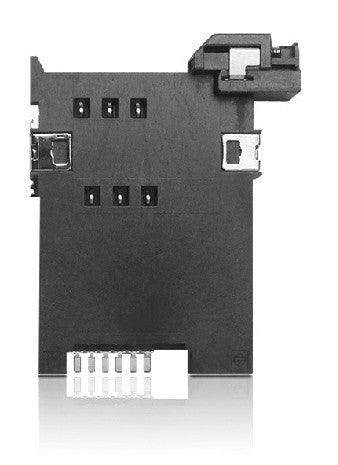

Yamaichi FMS Sim Card Connector (Push/Lock, Standard Type)
Yamaichi FMS Sim Card Connector (Push/Lock, Standard Type)
Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.
Specifications
Insulation Resistance: 500M min. at 500V DC
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m max. at 10mA / 20mV max.
Current Rating: 0.5A
Voltage Rating. 5.0Vrms
Operating Temp. Range: -55C to +85C
Mating Cycles: 5,000 insertions
Materials and Finish
Insulator: LCP
Contact: Copper Alloy, Ni-Au
Part Dimensions
| Part Number | Switch | Locking Mechanism |
| FMS006-2310-0 | No | Push/Lock |
Outline Dimensions
Datasheet
