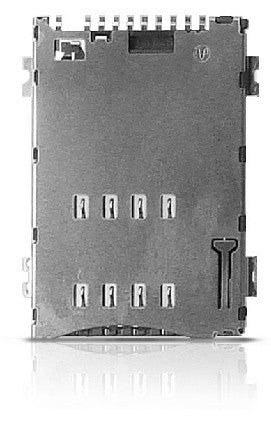

Yamaichi FMS 8 Pin Sim Card Connector (Push / Push)

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100m׸ max. at 1mA / 20mV max.
Current Rating: 0.5A
Voltage Rating. 5.0Vrms
Operating Temp. Range: -55C to +85C
Mating Cycles: 5,000 insertions

Materials and Finish

Insulator: LCP
Contact: Copper Alloy, Ni-Au

Part Dimensions

Part Number Switch Locking Mechanism
FMS008-6001-0 Yes Push/Push

Outline Dimensions

Datasheet

Download
