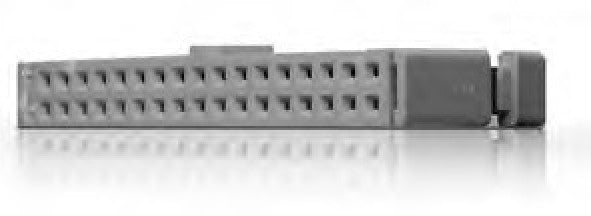

Yamaichi FAS Series IDC Type Socket (2.54mm pitch)

Name: Yamaichi FAS Series IDC Type Socket (2.54mm pitch)
Brand: Yamaichi
SKU: 02-00022
Price: 3.55 GBP
Availability: InStock

£3.55 GBP

Sale Sold out

Qty (Enter below) 1-49 pcs

Part Number FAS-20-17

Product variants

Quantity

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 700V ACrms for 1 minute
Contact Resistance: 30m׸ max. at 10mA
Current Rating: 1A
Operating Temp. Range: 20C to +105C

Materials and Finish

Housing: PBT, glass filled UL 94V-0 rated
Contacts: Copper Alloy
Plating: Contacts - Au 0.3׬m over Ni
IDC Terminals - Flash Au over Ni

Part Dimensions

Part Number	No. of Leads	A	B
FAS-16-17	16	24.9	17.78
FAS-20-17	20	29.98	22.86
FAS-26-17	26	37.6	30.48
FAS-34-17	34	47.76	40.64

Outline Dimensions
