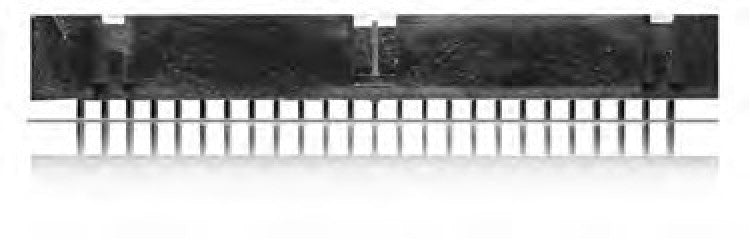

Yamaichi FAP Series Mil Std. Box Header Plug (2.54mm pitch)
Yamaichi FAP Series Mil Std. Box Header Plug (2.54mm pitch)
Looking to purchase this product? Contact us using the form below or email sales@cyntech.co.uk and we'll be happy to provide a quotation and help you find the right solution for your application.
Specifications
Insulation Resistance: 1,000M min. at 500V DC
Withstanding Voltage: 1,000V ACrms for 1 minute
Contact Resistance: 30m max. at 10mA
Current Rating: 1A
Operating Temp. Range: 20C to +105C
Soldering Temperature: 260C / 10 sec.
Materials and Finish
Housing: PBT, glass filled UL94V-0 rated
Contacts: Copper Alloy
Plating: Contacts - Gold over Nickel
Solder Terminals - Flash Au over Ni
Part Dimensions
| Part Number | No. of Leads | A | B | C |
| FAP-10-08-2-1-0BF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-10-08-2-2-0AF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-10-08-2-2-0BF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-10-08-4-1-0BF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-10-08-4-2-0AF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-10-08-4-2-0BF | 10 | 20.3 | 17.9 | 10.16 |
| FAP-14-08-2-2-0AF | 14 | 25.4 | 23 | 15.24 |
| FAP-14-08-2-2-0BF | 14 | 25.4 | 23 | 15.24 |
| FAP-14-08-2-2-0BF | 14 | 25.4 | 23 | 15.24 |
| FAP-14-08-4-1-0BF | 14 | 25.4 | 23 | 15.24 |
| FAP-14-08-4-2-0AF | 14 | 25.4 | 23 | 15.24 |
| FAP-14-08-4-2-0BF | 14 | 25.4 | 23 | 15.24 |
| FAP-16-08-2-1-0BF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-16-08-2-2-0AF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-16-08-2-2-0BF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-16-08-4-1-0BF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-16-08-4-2-0AF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-16-08-4-2-0BF | 16 | 27.9 | 25.5 | 17.78 |
| FAP-20-08-2-2-0AF | 20 | 33 | 30.6 | 22.86 |
| FAP-20-08-2-2-0BF | 20 | 33 | 30.6 | 22.86 |
| FAP-20-08-4-2-0AF | 20 | 33 | 30.6 | 22.86 |
| FAP-20-08-4-2-0BF | 20 | 33 | 30.6 | 22.86 |
| FAP-26-08-2-2-0AF | 26 | 40.6 | 38.2 | 30.48 |
| FAP-26-08-2-2-0BF | 26 | 40.6 | 38.2 | 30.48 |
| FAP-26-08-4-1-0BF | 26 | 40.6 | 38.2 | 30.48 |
| FAP-26-08-4-2-0AF | 26 | 40.6 | 38.2 | 30.48 |
| FAP-26-08-4-2-0BF | 26 | 40.6 | 38.2 | 30.48 |
| FAP-34-08-2-2-0AF | 34 | 50.8 | 48.4 | 40.64 |
| FAP-34-08-2-2-0BF | 34 | 50.8 | 48.4 | 40.64 |
| FAP-34-08-4-2-0AF | 34 | 50.8 | 48.4 | 40.64 |
| FAP-34-08-4-2-0BF | 34 | 50.8 | 48.4 | 40.64 |
| FAP-40-08-2-2-0AF | 40 | 58.4 | 56 | 48.26 |
| FAP-40-08-2-2-0BF | 40 | 58.4 | 56 | 48.26 |
| FAP-40-08-4-2-0AF | 40 | 58.4 | 56 | 48.26 |
| FAP-40-08-4-2-0BF | 40 | 58.4 | 56 | 48.26 |
| FAP-50-08-2-2-0BF | 50 | 71.1 | 68.7 | 60.96 |
| FAP-50-08-4-2-0AF | 50 | 71.1 | 68.7 | 60.96 |
| FAP-50-08-4-2-0BF | 50 | 71.1 | 68.7 | 60.96 |
| FAP-64-08-4-2-0AF | 64 | 88.9 | 86.5 | 78.74 |
Outline Dimensions
Datasheet
