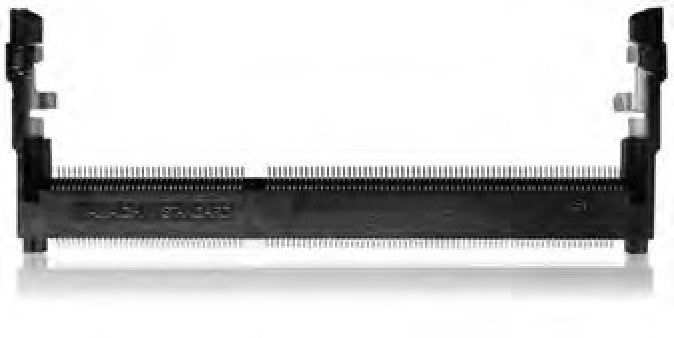

Yamaichi CN112S DDR 3 DIMM Module Socket (204 Pin)

Yamaichi CN112S DDR 3 DIMM Module Socket (204 Pin)

£1.73

Specifications

Insulation Resistance: 1,000MΩ min.
Withstanding Voltage: 500V AC for 1 minute
Contact Resistance: 50mΩ max.
Voltage Rating: 100V AC/DC
Current Rating: 0.6A
Operating Temp. Range: –55°C to +85°C
Mating Cycles: 25 times

Materials and Finish

Insulator: LCP (Liquid crystal polymer)
Contact: Copper Alloy / Ni- Au plating
Reinforcement: Stainless
Terminals: Ni-Sn plating

Part Dimensions

Part Number No. of Leads
CN112S-1100-FT00 204



Outline Dimensions



Datasheet

Download
