Microprecision Series MP11x Microswitch (Optional MP100 Cover)

Microprecision Series MP11x Microswitch (Optional MP100 Cover)

POA

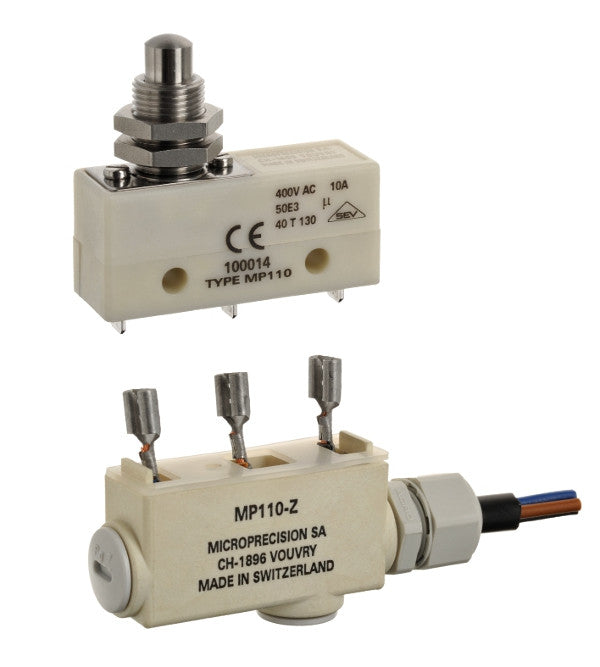

Sealed basic snap action microswitch. A precision microswitch for high breaking capacity, the MP110 series offers IP67 protection using wide range of interchangeable actuators.

The switching mechanism is completely protected by the housing, which is itself assembled by ultrasonic welding. However, as it has protruding connection terminals, it has to be provided with an accessory system of connection,
which can be :

  • Push-on clips 6.35 x 0.80 mm (AMP)
  • Plug-in system of connection MP100-.. IP67
  • Protective terminal covers MP110-Z.. IP64

Quick Order Parts

Part Sealing Contact plating Temperature range Actuator Termination / Cable
MP110-0 IP67 Silver -40°C to 130°C button AMP solder lugs 6.35x0.80mm, optional plug-in socket or cover
MP110-1A IP67 Silver -40°C to 130°C telescopic AMP solder lugs 6.35x0.80mm, optional plug-in socket or cover
MP110-1BL IP67 Silver -40°C to 130°C telescopic w. roller plunger AMP solder lugs 6.35x0.80mm, optional plug-in socket or cover
MP110-5AL IP67 Silver -40°C to 130°C roller lever, indirect action AMP solder lugs 6.35x0.80mm, optional plug-in socket or cover
MP110-7AF/63.5/50 IP67 Silver -40°C to 130°C lever with floater AMP solder lugs 6.35x0.80mm, optional plug-in socket or cover
MP100-K1/10 IP67 Silver -20°C to 105°C Cable plug-in socket for MP110 series 1m PVC, 3x1mm2, UL rated

Part Numbers

Generate a Part

- / -

Details


Option Terminal

Technical Specifications

Approval

EN 61058-1

UL 61058-1

Housing Glass fiber reinforced (PBT or PA 6T/66)
Plunger PC
Membrane Fluorsilicone - Upon request other material
Mechanism Contacts Change-over, Snap-action with blade in Beryllium Copper
Contact material Fine Silver, Gold contact upon request
Termination Push-on clip 6.35 x 0.80 mm, protective cover
Actuator Overall dimensions in stainless steel
Degree of protection

Housing IP67

Terminals IP00

Plug-in MP100 IP67

Protective cover IP64

Class of protection II
Micro-switch μ
Contac-gap 0.50 mm
Dimensions

DIN 41 635, EF - form

49 x 21.5 x 17.5 mm
Power rating

400VAC / 10A

250VAC / 15A

Operating range force 0.2 to 6.0 N, depending actuator
Operating temperature range

EN 61058 -40°C to +130°C (PBT and PA 6T/66)

UL 61058 -40°C to +115°C (PA 6T/66)

UL 61058 -40°C to +125°C from the second half of 2014 (PBT)

Mechanical life 50 x 106
Standard 50'000 cycles
