LISIPAROI LED Light Ring/Flash for Raspberry Pi Camera

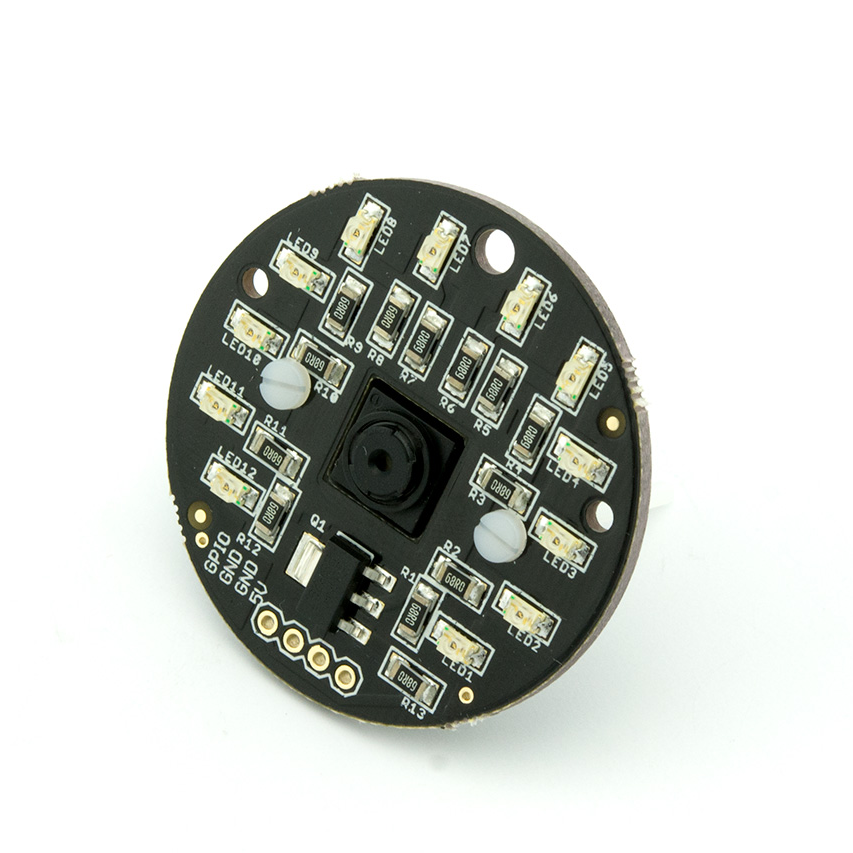

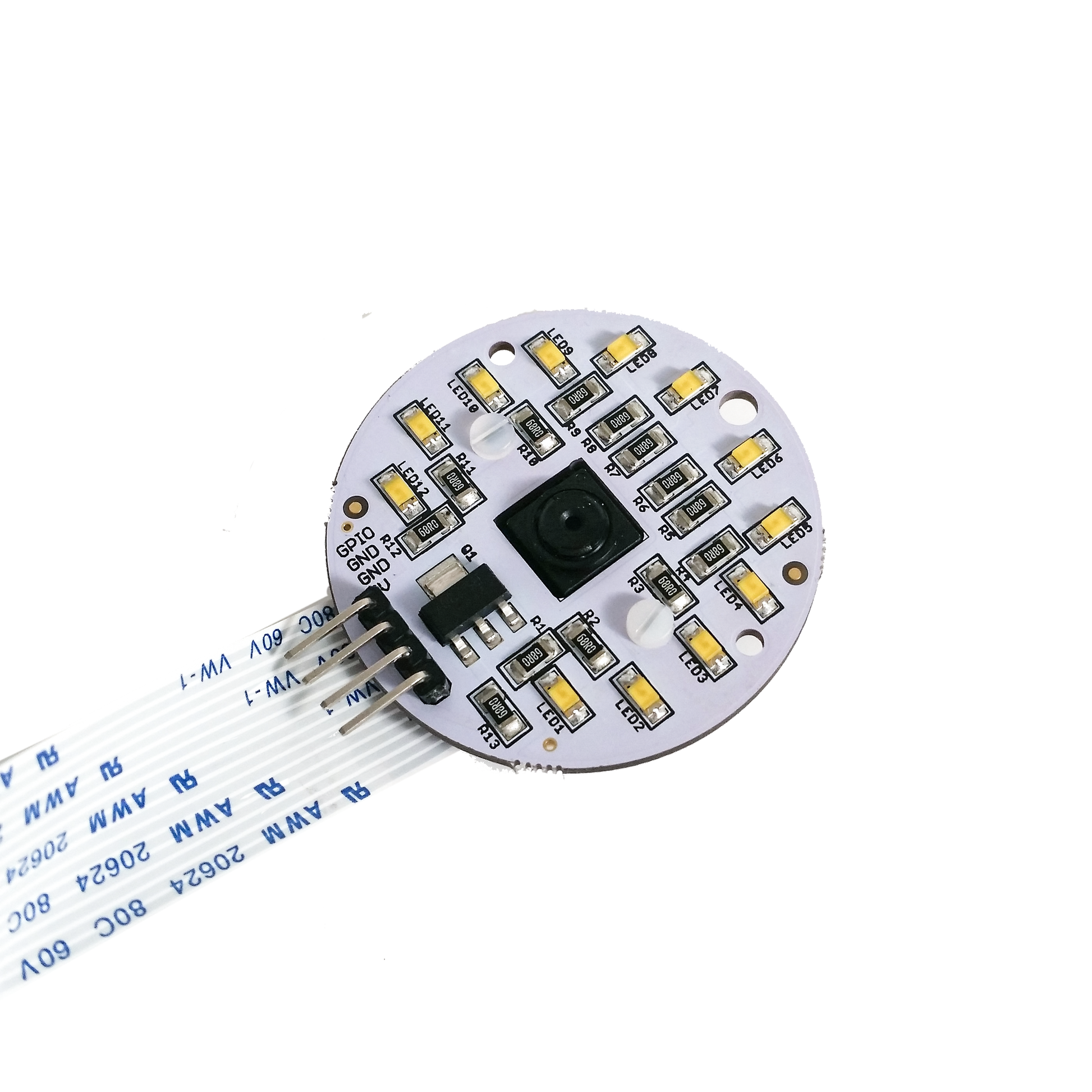

The LISIPAROI is an additional light source for your Raspberry Pi camera module, available in both White LEDs for the standard Raspberry Pi Camera module and Infrared for the Pi-Noir camera module.

The LISIPAROI can be used as a flash or steady light source, The white version is perfect for the standard camera module, illuminating your subject or providing much needed lighting when the lack of light causing an issue in your photos or video. Using the Infrared LISIAPAROI alongside the Pi-Noir camera module means you can take photos in 0 lux (total darkness)! This makes it the perfect addition for Pi powered security cameras, night time wildlife watching or maybe even ghost hunting.

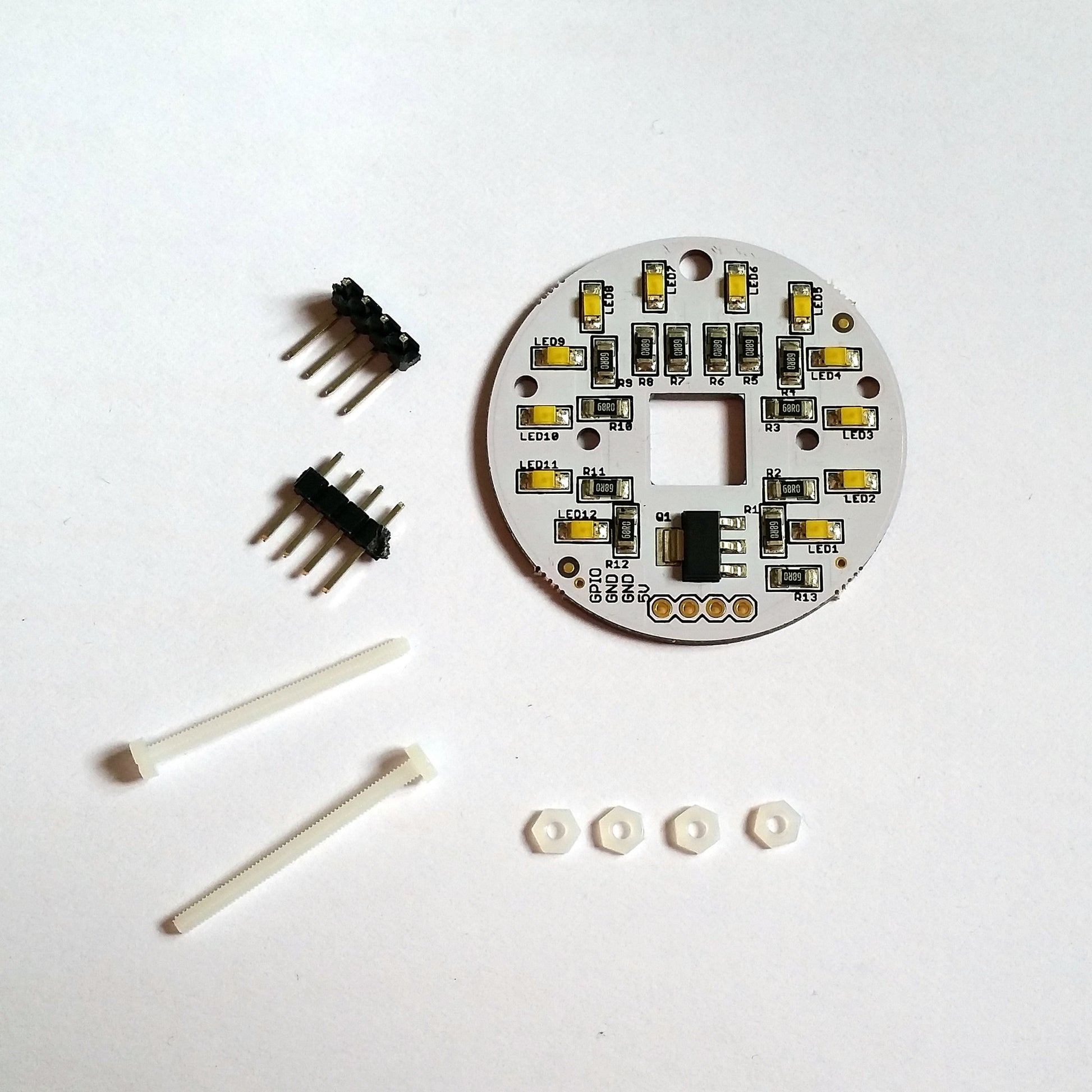

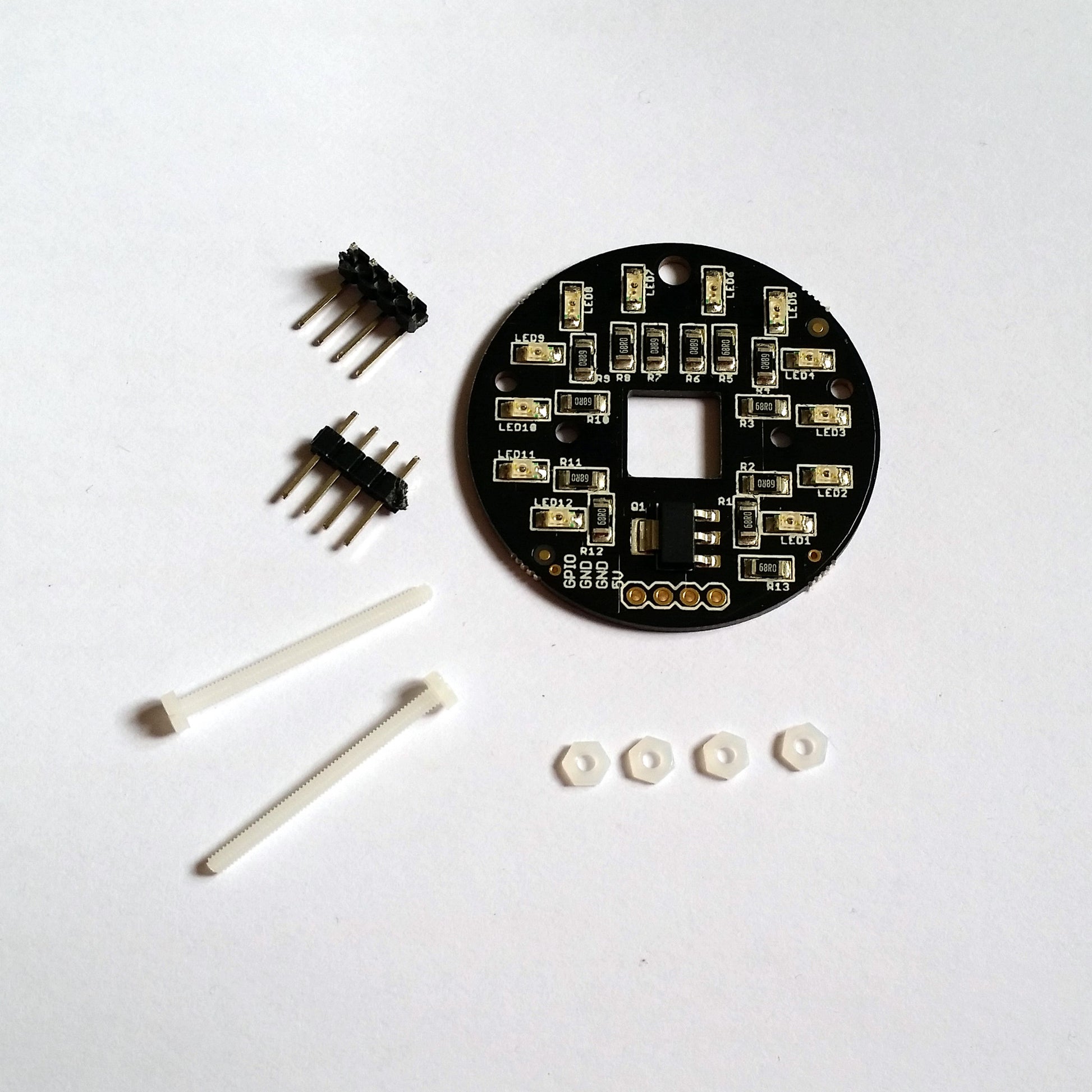

The LISIPAROI can be attached directly to the camera module using the pre-existing mounting points and also provides additional mounting points should you need them.

The LISIPAROI can be powered by the Raspberry Pi or by an external power supply.

Brightness can be controlled digitally by PWM or analogue by varying the voltage between 0 and 3v.

• White or Infrared LEDs
• Flash or Steady Light
• Powered by Pi or separate battery pack
• Attaches to existing camera module
• Brightness control
• Additional mounting points
• Perfect for security or timelapse photography

Specification:

Type	White	Infrared
LED Voltage	5v	5v
Switch On Voltage	3.3v	3.3v
Max Current	240mA	600mA
Current per LED	20mA	50mA
Wavelength per LED		940nm
Intensity per LED	260mcd



Examples:

Using the white LISIPAROI to capture a timelapse of baby chicks hatching overnight



More information is available at http://www.lisiparoi.co.uk
