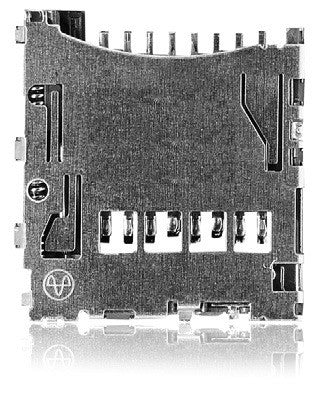

Yamaichi PJS MicroSD Card Connector - Push / Push (Top Mount) - 2120

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 500M׸ min. at 500V DC
Withstanding Voltage: 500V AC rms for 1 minute
Contact Resistance: 100m׸ at 1mA / 20mV max.
Voltage Rating: 50Vrms AC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Coplanarity: < 0.1mm
Reflow Temp.: 220C for max.60 secs.,260 peak /10 secs.
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding Plate: Stainless
Contacts: Copper Alloy, Ni-Au

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
PJS008-2120-0 Yes Yes Yes

Outline Dimensions

Datasheet

Download
