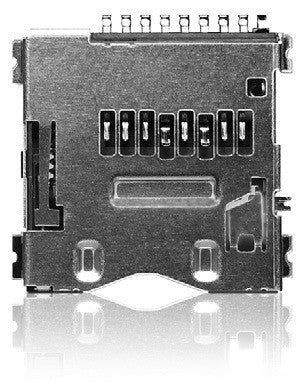

Yamaichi PJS MicroSD Card Connector - Push / Push (Reversed Type)

Yamaichi PJS MicroSD Card Connector - Push / Push (Reversed Type)

POA

Specifications

Insulation Resistance: 1,000MΩ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100mΩ at 1mA / 20mV max.
Voltage Rating: 50Vrms AC
Current Rating: 0.5A
Operating Temp. Range: –25°C to +85°C
Coplanarity: < 0.1mm
Reflow Temp.: 220°C for max. 60 secs., 260° peak /10 secs.
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP
Shielding Plate: Stainless
Contacts: Copper Alloy, Ni-Au

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
PJS008-2003-0 Yes Yes Yes
PJS008-2003-1 Yes Yes Yes



Outline Dimensions



Datasheet

Download
