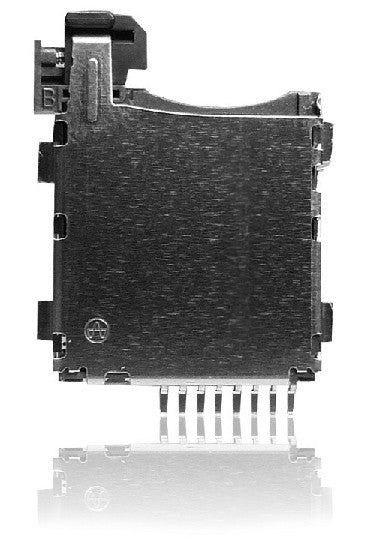

Yamaichi PJS MicroSD Card Connector - Locking Type

Regular price £0.00 GBP
Regular price Sale price £0.00 GBP
Sale Sold out
MOQ
Part Number

Specifications

Insulation Resistance: 1,000M׸ min. at 500V DC
Withstanding Voltage: 500V AC rms for 1 minute
Contact Resistance: 100m׸ at 1mA / 20mV max.
Voltage Rating: 5.0Vrms AC
Current Rating: 0.5A
Operating Temp. Range: 25C to +85C
Coplanarity: < 0.1mm
Reflow Temp.: 220C for max.60 secs., 260 peak /10 secs.
Mating Cycles: 30 times

Materials and Finish

Insulator: LCP
Shielding Plate: Stainless
Contacts: Copper Alloy, Ni-Au

Part Dimensions

Part Number Card Detector SMT Clips Locking Mechanism
PJS008-2100-0-VE Yes Yes Yes

Outline Dimensions

Datasheet

Download
