Yamaichi IC149 QFN Socket and Emulation Adapter
Contact us for price and delivery time: sales@cyntech.co.uk
Description

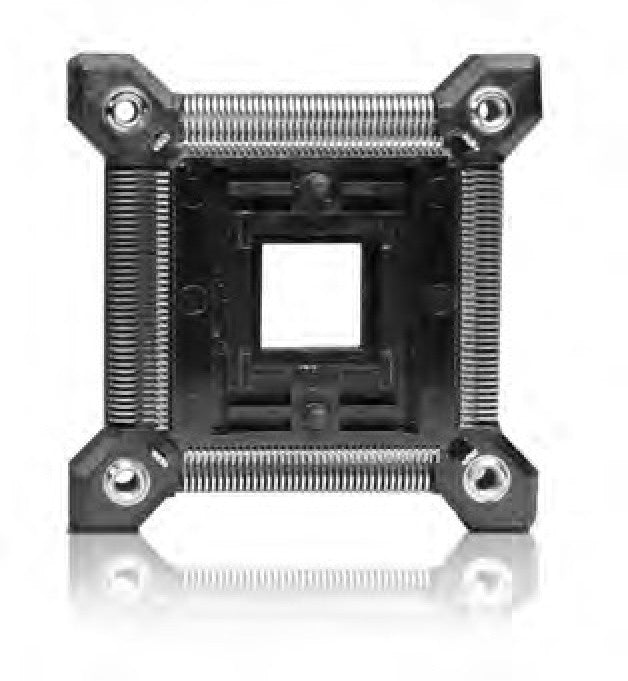

YAMAICHI's IC149-Series is available in many different formats, from 44 pins to 240 pins. It is designed to fit most of the common semiconductors from various manufacturers.
The PC-Board-Layout for this SMT Socket Series virtually corresponds to that of the semiconductor. Since the space required for this Socket is the same as the
semiconductor itself, there is no need to change the PC-Board-Layout after finishing the experimental stage.
Once the Socket is no longer required for trials or testing, it can be removed without the necessity to redesign the PC-Board-Layout. The insertion and fixing of the IC can be easily achieved by bolting the engaging top frame. To secure the
Socket before soldering, it is also available with positioning pins.
Part Dimensions
Part Number | IC Package | IC Body Size | IC Dimensions (Total) |
IC149-044-*52-B5 | QFP44 0.8 pitch | 10 x 10 | 12.20 x 12.20 |
IC149-044-*49-B5 | QFP44 0.8 pitch | 14 x 14 | 17.2 x 17.2 |
IIC149-064-*69-B5 | QFP64 0.5 pitch | 10 x 10 | 12.0 x 12.0 |
IC149-064-*75-B5 | QFP64 0.5 pitch | 10.4 x 10.4 | 12.0 x 12.0 |
IC149-064-*08-B5 | QFP64 0.8 pitch | 14 x 14 | 17.2 x 17.2 |
IC149-064-*01-B5 | QFP64 1.0 pitch | 14 x 20 | 17.6 ~20.1 x 23.6~26.1 |
IC149-080-*31-B5 | QFP80 0.5 pitch | 12 x 12 | 13.6 x 13.6 |
IC149-080-*30-B5 | QFP80 0.5 pitch | 12 x 12 | 14 x 14 |
IC149-080-*51-B5 | QFP80 0.65 pitch | 14 x 14 | 16 x 16 |
IC149-080-*17-B5 | QFP80 0.65 pitch | 14 x 14 | 17.2 x 17.2 |
IC149-080-*21-B5 | QFP80 0.8 pitch | 14 x 20 | 17.2 x 23.2 |
IC149-080-*12-B5 | QFP80 0.8 pitch | 14 x 20 | 18.8 x 24.8 |
IC149-100-*25-B5*1) | QFP100 0.5 pitch | 14 x 14 | 16 x 16 |
IC149-100-*54-B5*1) | QFP100 0.5 pitch | 14 x 14 | 16 x 16 |
IC149-100-028-B5 | BQFP100 0.635 pitch | 19.13 x 19.13 | 22.94 x 22.94 |
IC149-100-*14-B5 | QFP100 0.65 pitch | 14 x 20 | 17.2 x 23.2 |
IC149-112-*42-B5 | QFP112 0.65 pitch | 20 x 20 | 23.2 x 23.2 |
IC149-120-*43-B5 | QFP120 0.4 pitch | 14 x 14 | 16 x 16 |
IC149-128-*80-B5 | QFP128 0.8 pitch | 28 x 28 | 31.2 x 31.2 |
IC149-132-*15-B5 | QFP132 0.635 pitch | 22.36 x 22.36 | 27.43 x 27.43 |
IC149-144-*45-B5*1) | QFP144 0.5 pitch | 20 x 20 | 22 x 22 |
IC149-160-050-B5 | QFP160 0.5 pitch | 24 x 24 | 26 x 26 |
IC149-160-*23-B5 | QFP160 0.65 pitch | 28 x 28 | 32 x 32 |
IC149-176-*66-B5 | QFP176 0.5 pitch | 24 x 24 | 26 x 26 |
IC149-208-*61-B5 | QFP208 0.5 pitch | 28 x 28 | 30.6 x 30.6 |
IC149-240-*67-B5 | QFP240 0.5 pitch | 32 x 32 | 34.6 x 34.6 |
Outline Dimensions
See Datasheet for individual part dimensions
