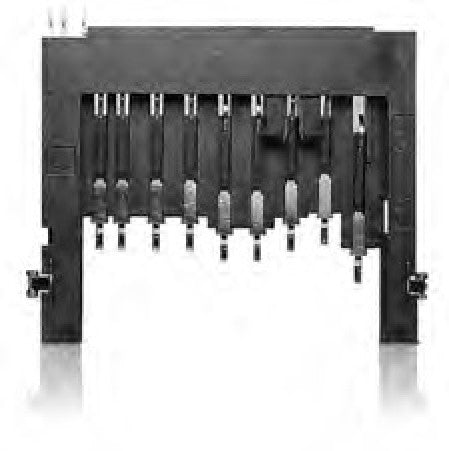

Yamaichi FPS SD Card and MMC Reader - Manual Insertion

Yamaichi FPS SD Card and MMC Reader - Manual Insertion

£379.18

Specifications

Insulation Resistance: 1,000MΩ min. at 500V DC
Withstanding Voltage: 500V ACrms for 1 minute
Contact Resistance: 100mΩ at 1mA / 20mV max.
Voltage Rating: 250Vrms AC
Current Rating: 0.5A
Operating Temp. Range: –25°C to +85°C
Coplanarity: < 0.1mm
Mating Cycles: 10,000 (office environment)

Materials and Finish

Insulator: LCP glass filled
Contacts: PB, t = 0.23
Contact area = Ni-Au
Solder Tails = NI-SnCu
Write Protection: PB, t = 0.18 Ni-Au
Card Detector: PB, t = 0.15, Ni-Au
Ejector: LCP glass filled

Part Dimensions

Part Number Simple Ejector Card Detector SMT Clips Write Protection Switch
FPS009-3001-BL Yes Yes Yes Yes
FPS009-3002-BL - Yes Yes Yes
FPS009-3003-BL - - Yes -



Outline Dimensions



Datasheet

Download
