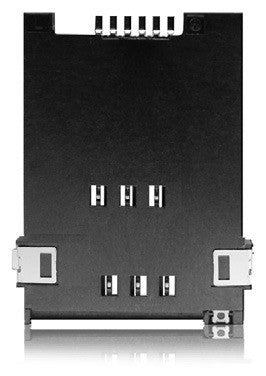

Yamaichi FMS Sim Card Connector (Push/Push, Standard Type)

Interested in this product? Please use the contact form below to request a quote. Include the part number and quantity in your message.

MOQ
Part Number

Specifications

Insulation Resistance: 500M׸ min. at 500V DC
Withstanding Voltage: 250V ACrms for 1 minute
Contact Resistance: 100m׸ max. at 10mA / 20mV max.
Current Rating: 0.5A
Voltage Rating. 5.0Vrms
Operating Temp. Range: -55C to +85C
Mating Cycles: 5,000 insertions

Materials and Finish

Insulator: LCP
Contact: Copper Alloy, Ni-Au

Part Dimensions

Part Number Switch Positioning Pins Locking Mechanism
FMS006Z-2000-0 No No Push/Push
FMS006Z-2001-0 Yes No Push/Push
FMS006Z-2001-1 Yes Yes Push/Push

Outline Dimensions

Datasheet

Download
