Microprecision Series MP9xx Emergency Stop Button
Microprecision Series MP9xx Emergency Stop Button
Regular price
£0.00 GBP
Regular price
Sale price
£0.00 GBP
Taxes included.
Quantity
Couldn't load pickup availability

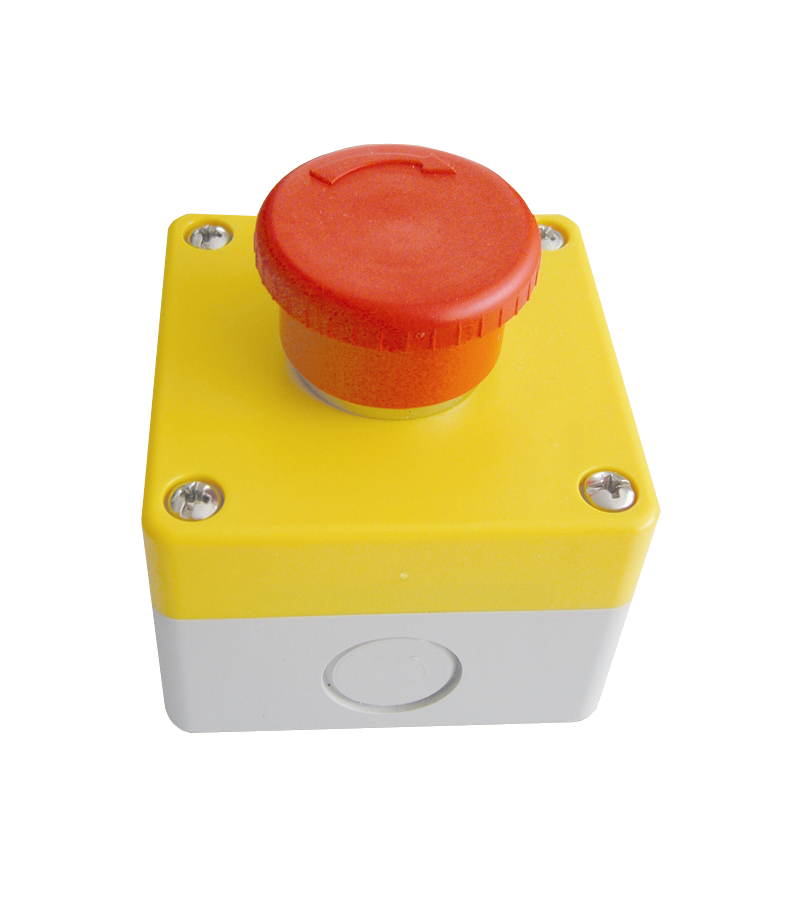

Emergency stop button mounted on a thermoplastic or aluminium alloy housing with IP65 protection. It can also be ordered without housing for front panel assembly. The button is available as a momentary or latching mechanism, which can be released by twisting or pulling. The NC circuit is designed as a positive break operation. Up to two switching modules (either NC or NO) in any combination can be mounted to the button unit.
Housing is available as a grey, yellow or sandblasted finishing.
Quick Order Parts
| Part Number |
| MP912-5-0RT1 |
Part Numbers
Generate a Part
- - -Details
Technical Specifications
| Device conforms with | IEC 947-5-1 and |
| EN 60947-5-1 | |
| Certifications | UL 508 / CSA 22-2 n14 |
| Operating temperature | -25 to +70C |
| -13F to 158F | |
| Degree of protection | IP65 |
| Mechanical life | 3x10 |
| Conventional free air thermal current Ith | 10A |
| Rated insulation voltage (degree of pollution 3) | 660V |
| Rated operational current | AC-15 240VAC 6A |
| DC-13 250VDC 0.27A | |
| Short circuit protection | 10A |
