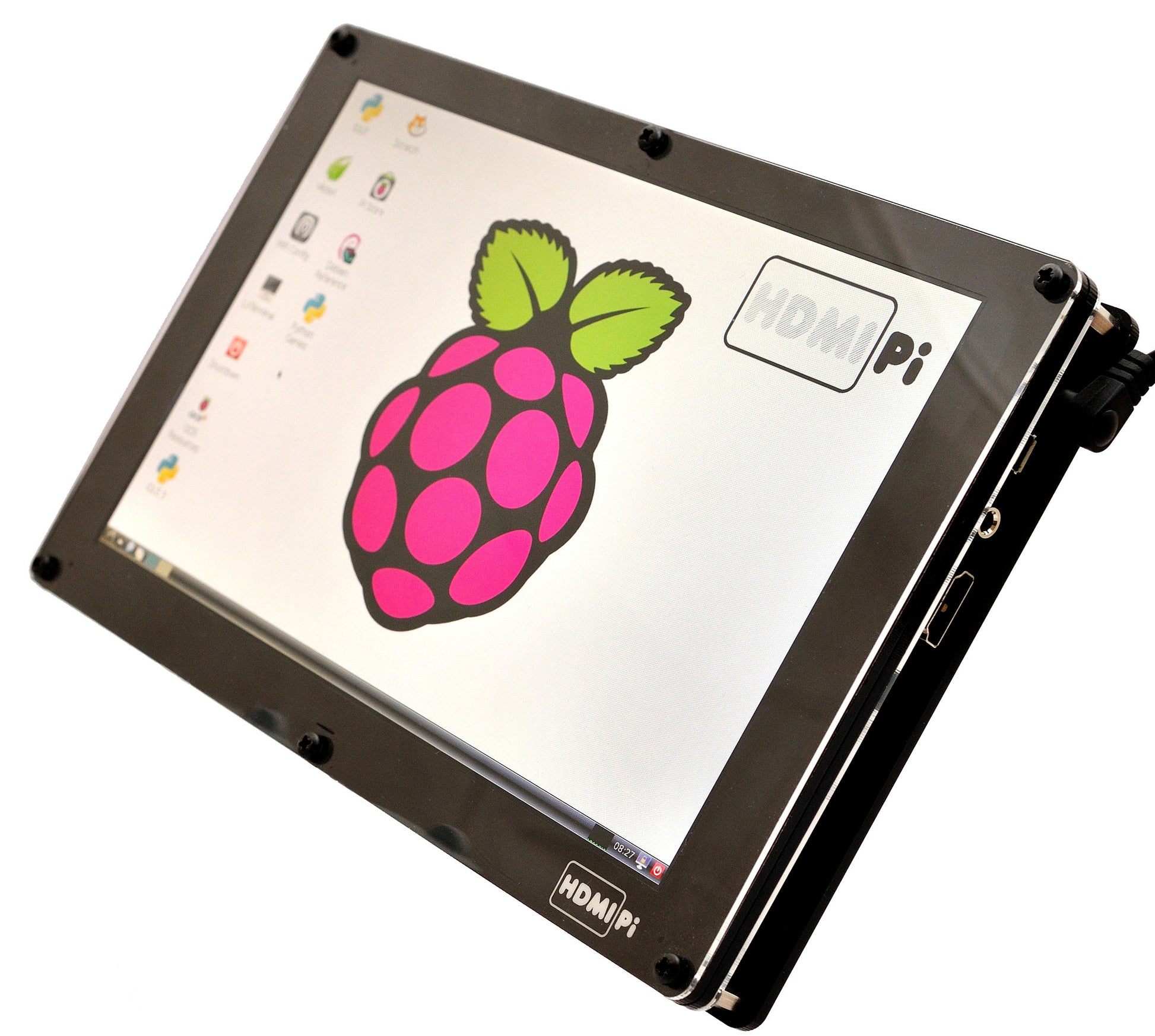

9" LCD Screen and Enclosure Kit

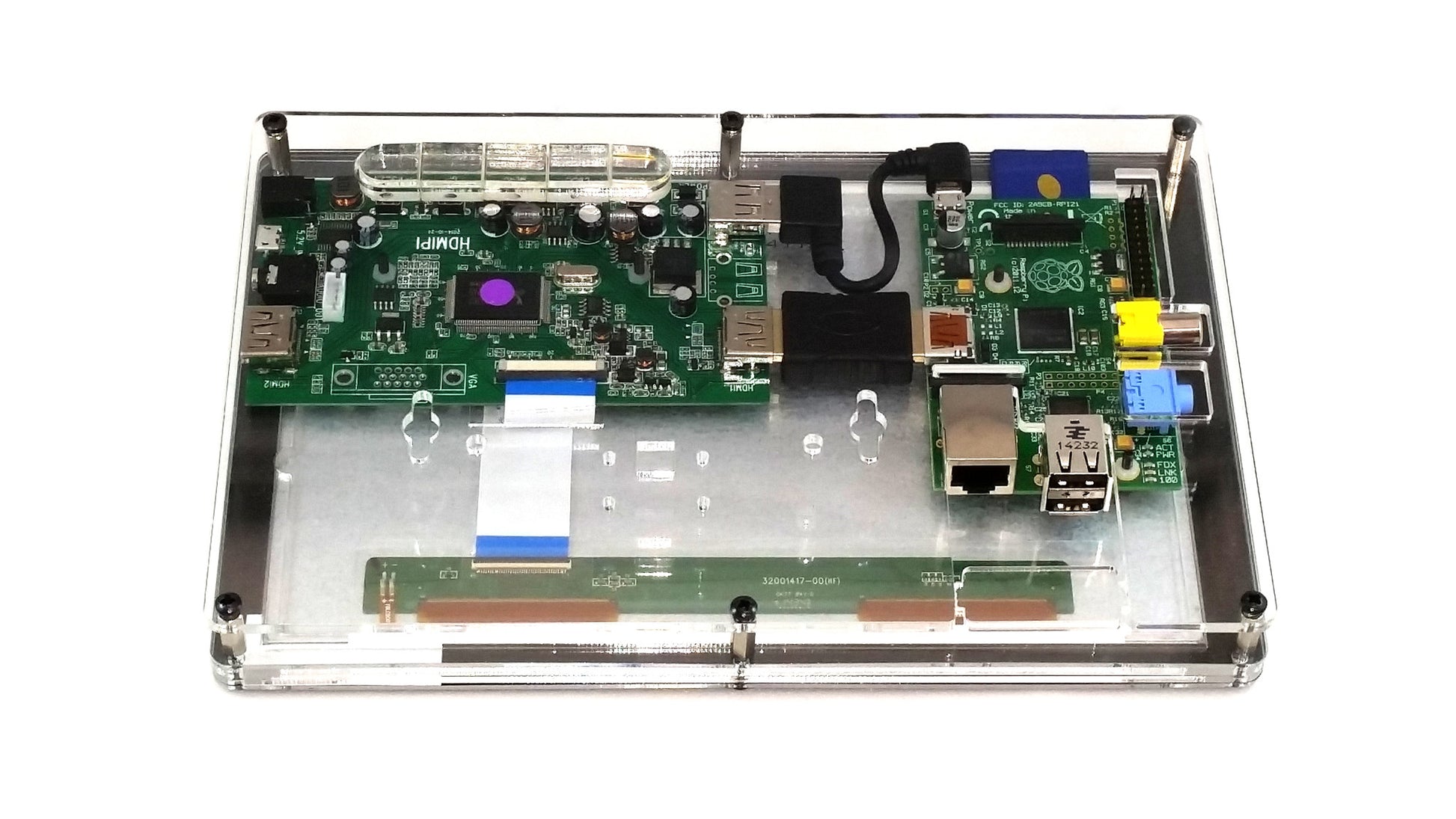

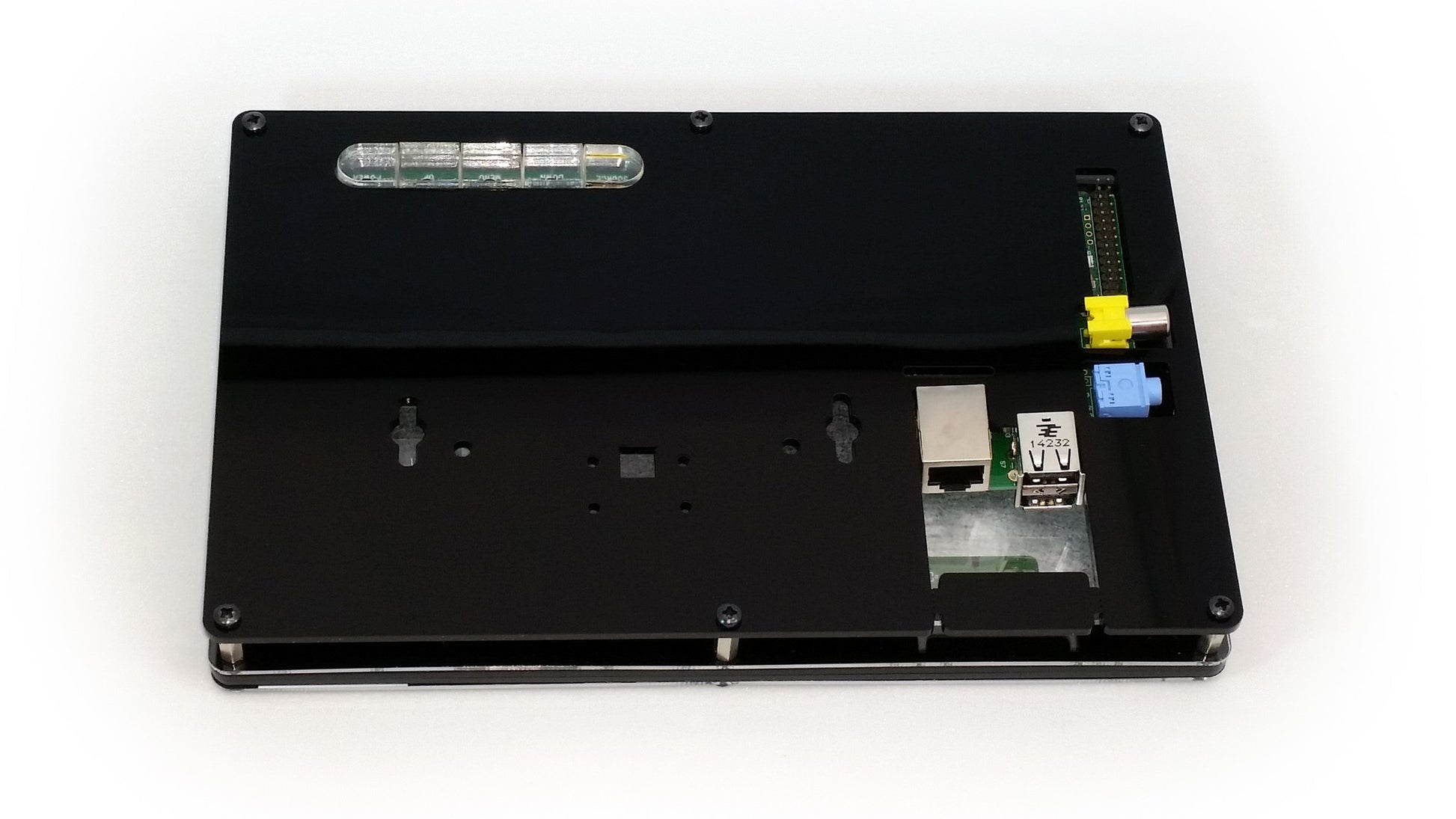

Fully enclosed LCD screen capable of fitting your Raspberry Pi inside, perfect for using your Raspberry Pi on the go.

Suitable for all versions of Raspberry Pi - Select the correct back plate below.

Also works with the Raspberry Pi 3 Model B, although it is recommended to power the Pi 3 separately if power hungry devices such as hard drives or multiple USB devices are being used to avoid a large voltage drop during use.

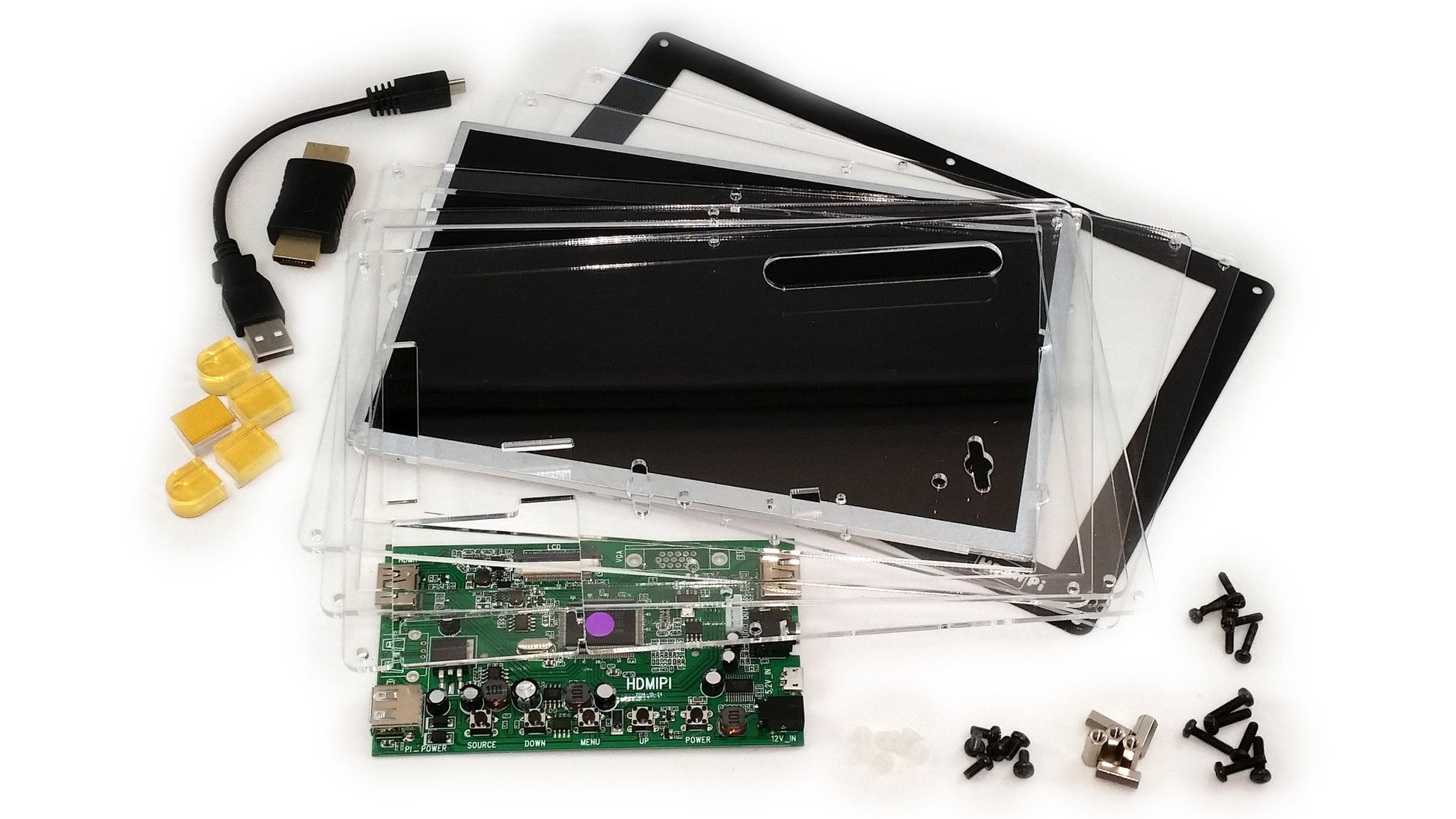

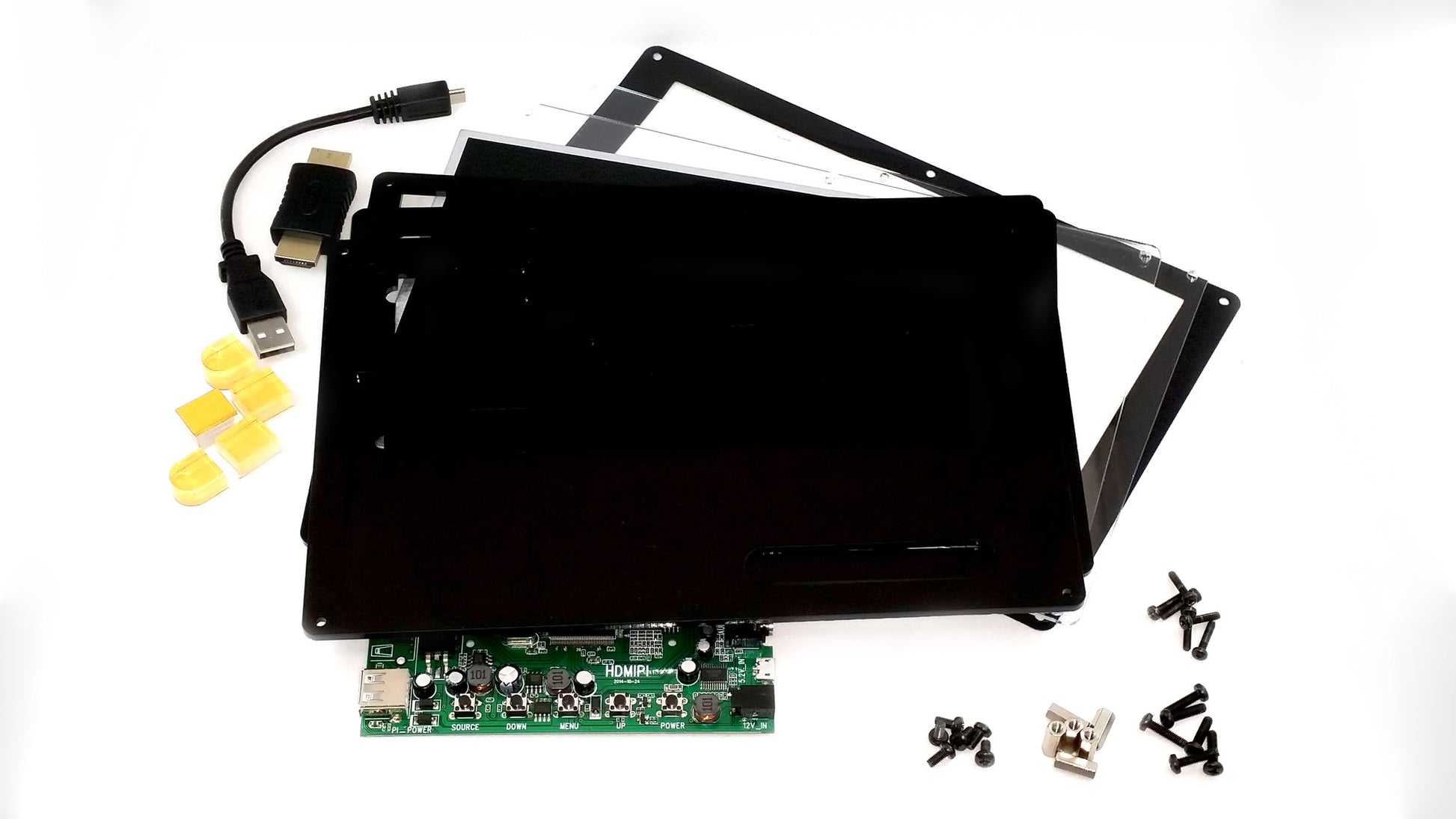

Please note this is in kit form and requires assembly. Raspberry Pi shown is not included.

Specifications

1280x800 LCD Panel

Custom designed driver board

2 HDMI Inputs

1 USB output for power (For the Raspberry Pi)

VGA Input (Unpopulated)

5v Micro USB Input (2 Amp power supply required)

12v DC Barrel Jack (1 Amp power supply required)

Instruction Manual

http://hdmipi.com/wp-content/uploads/2014/08/HDMIPi_User_Guide1.04.pdf

Build Instructions

A step by step guide is available on our Guides @ Cyntech site
